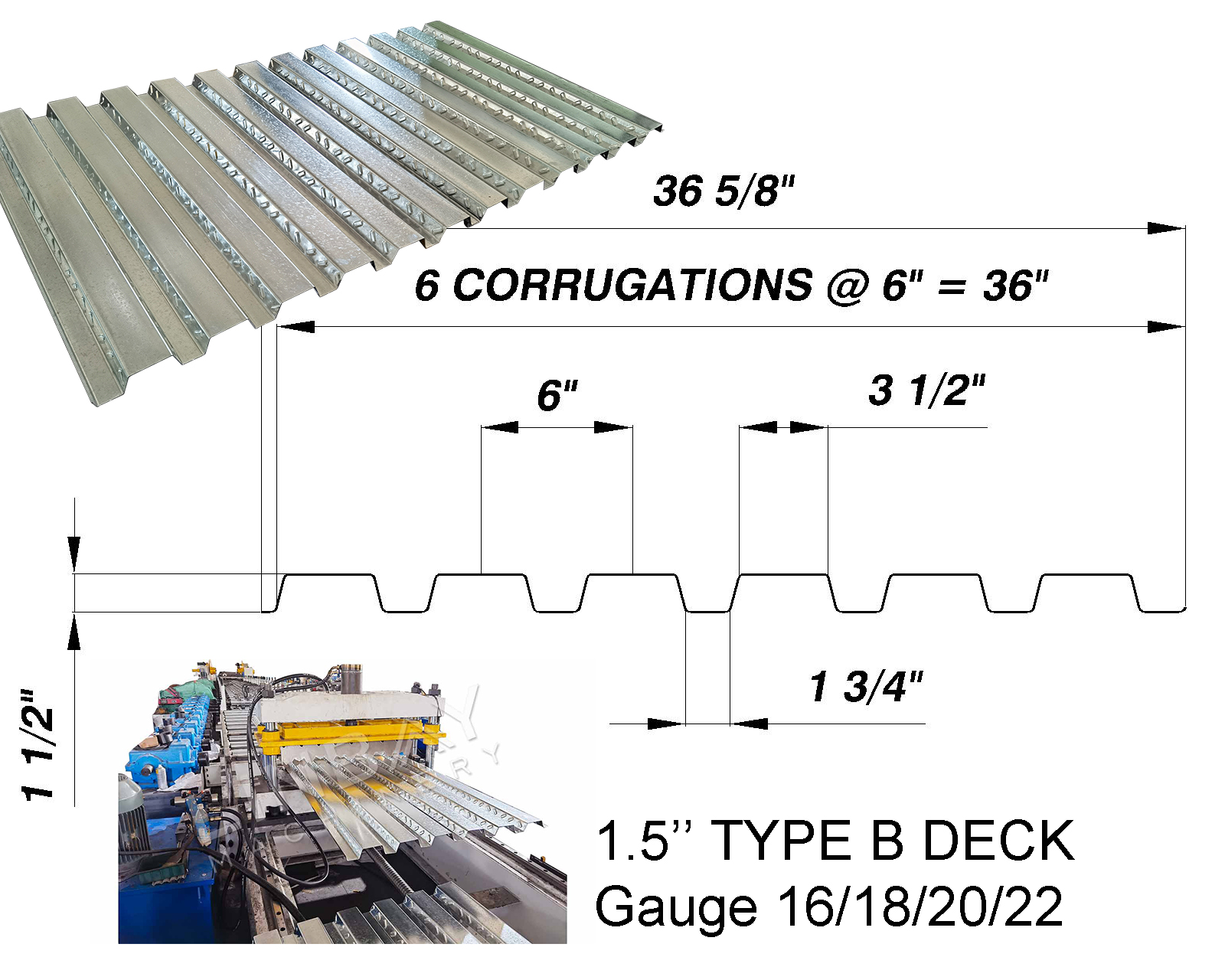

Galvanized Type B Wide Rib Roof Deck Roll Forming Machine 1.5'' Flying Shear
The products(metal deck roll forming machine/metal deck bending machine) are widely used in power plants, electric power equipment companies, automobile exhibition halls, steel structure plants(floor decking roll forming machine/ floor decking bending machine), cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theatres, large supermarkets, logistics centres, Olympic venues stadiums and other steel structure buildings. (Steel deck roll forming machine/Steel deck bending machine)
It can adapt to the requirements of rapid construction of the main steel structure, and can provide a firm working platform in a short period of time, and can adopt the flowing construction of laying pressed steel plates on multiple floors and pouring concrete slabs in layers. (roof deck roll forming machine/ roof deck bending machine)
Flow chart of B deck roll forming machine:
Double head decoiler--Guiding--Hydraulic cut--Roll forming machine--Hydraulic flying shear--Out table
| Galvanized Type B Wide Rib Roof Deck Roll Forming Machine 1.5'' Flying Shear |
| Plus configurations |
| Item | Specification |
| Machinable Material : | Type : | A) Galvanized Coil |
| Thickness : | 0.8-1.5mm |
| Yield strength : | ≤550 Mpa |
| Working speed : | 0-20m/min |
| Machine colour : | Industrial blue |
| Delivery : | 120 working days |
| Warranty : | 24 months |
| Uncoiling : | Type : | Hydraulic uncoiling |
| Capacity : | 10 tons |
| Pre- forming shear : | Type : | Electric motor control |
| Waste : | 0mm |
| Roll forming machine : | Forming steps : | 32 |
| Motor power : | 2x18.5kw |
| Transmission system : | gearbox |
| Support structure : | cast iron with stiffner |
| Material of rollers : | #45 steel tempering quenching chrom plating |
| Diameter of shafts : | φ95mm |
| Hydraulic cutting system : | Type : | Tracking shear |
| Cutting length : | Any length |
| Length tolerance : | ≤1mm |
| Auto stacker : | Type : | Automatic |
| Length : | depends on the maximum length of deck |
| Hydraulic station : | Motor power : | 7.5kw |
| PLC Control : | Language : | English-Chinese |
| Inversor : | Yaskawa*2 |
| PLC : | Siemens |
| Electricity : | 380V 50Hz 3Ph or according to your requirement |

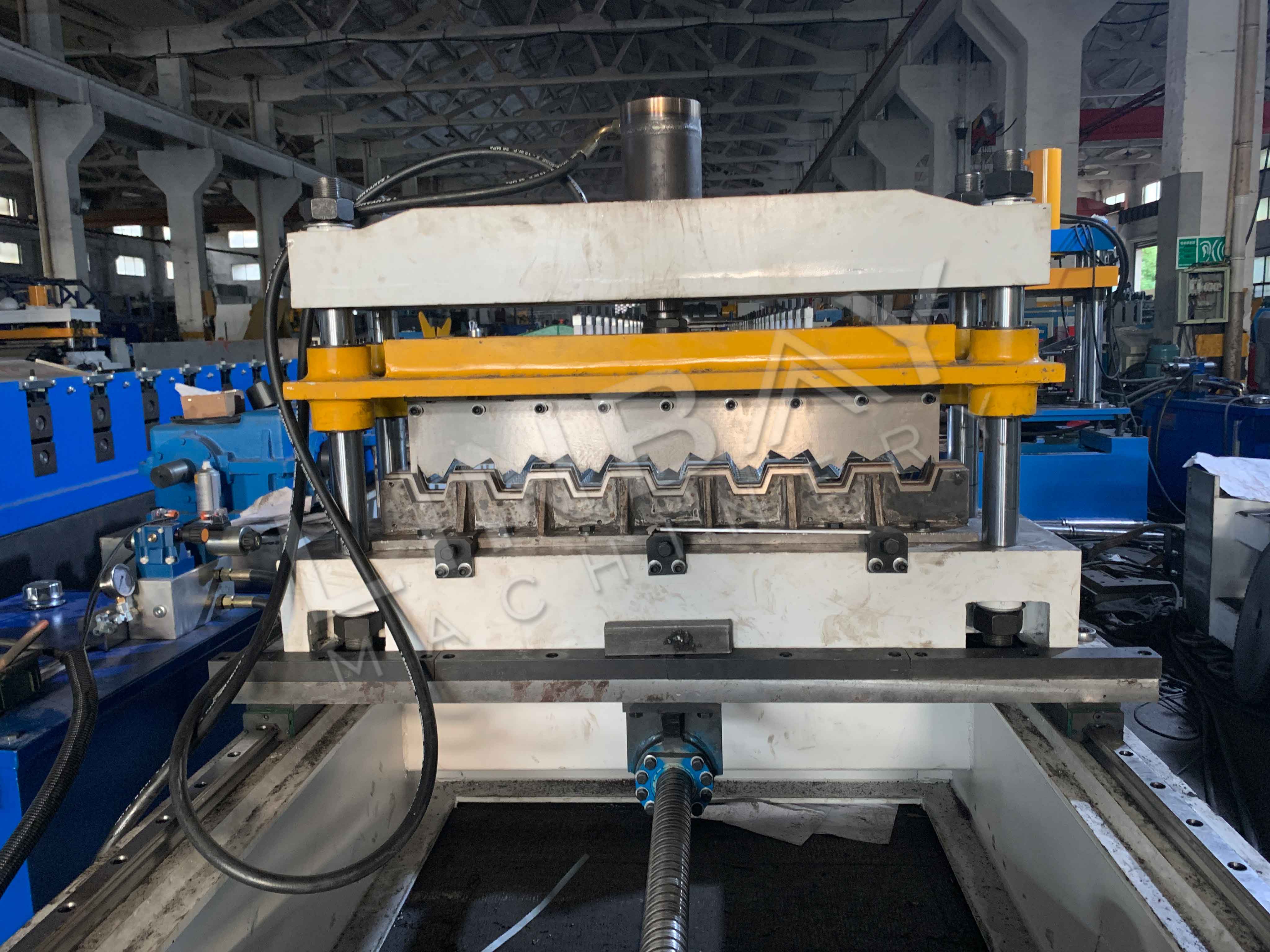

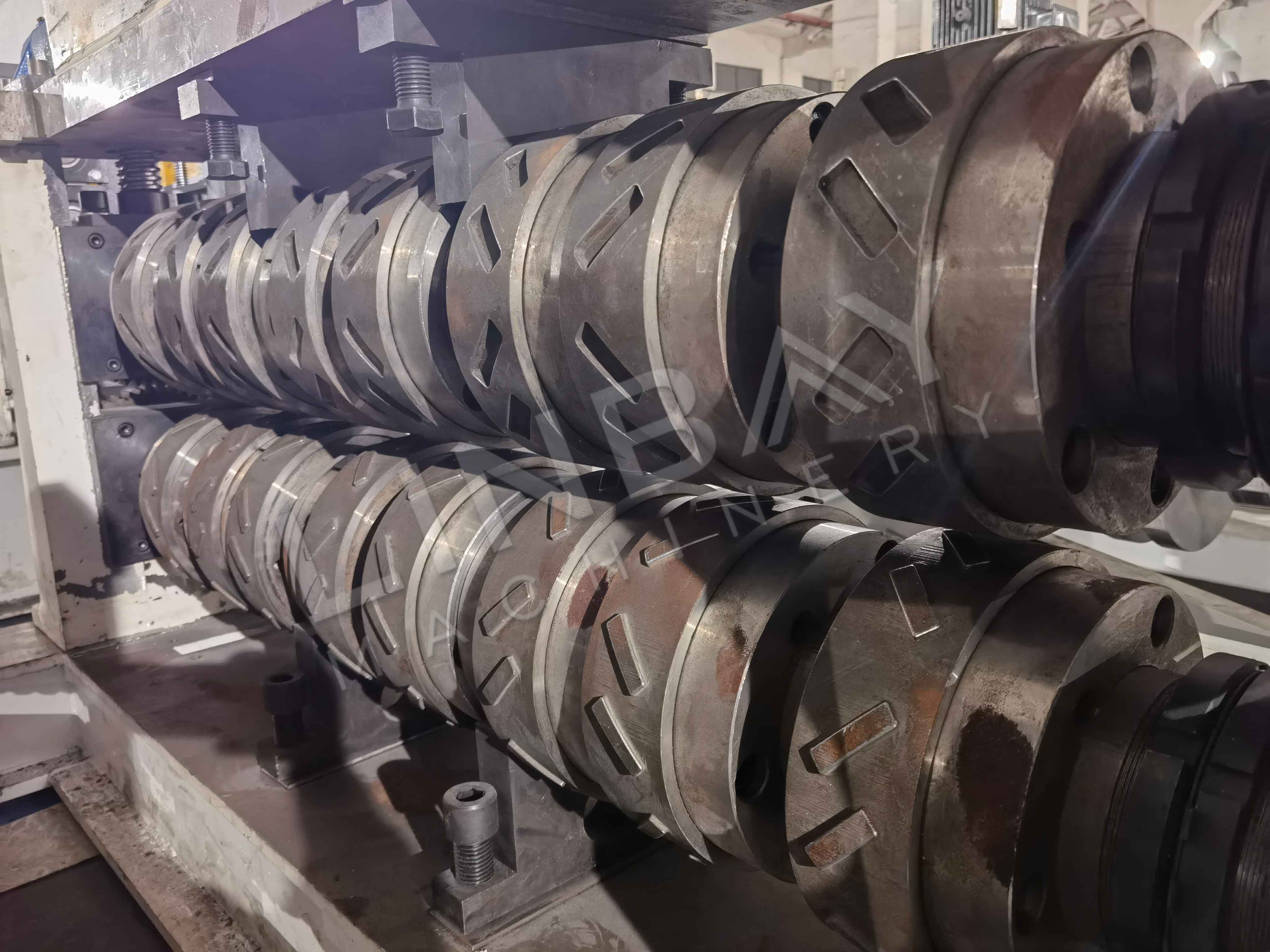

Pictures of B deck roll forming machine:
