TRD91.5 Metal Deck Roll Forming Machine 0.8-1mm Mexican Losacero 15

Mexican Losacero 15 TRD91.5 Steel Deck Roll Forming Machine Metal Panel

Open-ended floor joists. (metal deck roll forming machine/metal deck bending machine

1. light weight, high strength, good load-bearing and seismic resistance.

2. simple and quick construction, easy to assemble.

3. replacing traditional formwork and improving the shortcomings of traditional formwork.

4. can be used as part of the strength of the structure, reducing material costs

5. easy to construct with reinforcement, wiring and piping. (floor decking roll forming machine/ floor decking bending machine)

The construction(Steel deck roll forming machine/Steel deck bending machine) of open type pressed steel plates requires the addition of sealing plates and baffles, which are prone to slurry leakage during the concrete pouring process, and the bottom of the plate has to be tied with reinforcement, which will increase the construction cycle, while the construction of closed plate only requires the addition of a baffle plate, which does not require sealing plates and is not prone to slurry leakage at the construction site, and saves the time of tying the bottom of the plate with reinforcement. The closed plate is not easily deformed during the laying process, while the open plate will be lowered in height and wider during transportation and installation, and the deformation must be adjusted during the laying construction, otherwise it will affect the nature of the section and cause construction accidents due to the lowering of the plate height. (roof deck roll forming machine/ roof deck bending machine)

Flow chart of Mexican Losacero 15 TRD91.5 Steel Deck Roll Forming Machine Metal Panel:

Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table

TRD91.5 is a special type of floor slab in Mexico, which is the standard version of Ternium, also known as LOSACERO 15. this version is only used in Mexico and this line is also exported to Mexico.

Mexican Losacero 15 TRD91.5 Steel Deck Roll Forming Machine Metal Panel Parameters:

Pictures of UK TR60+ Comflor 60 Floor Deck Forming Machine S350 Galvanized Steel:

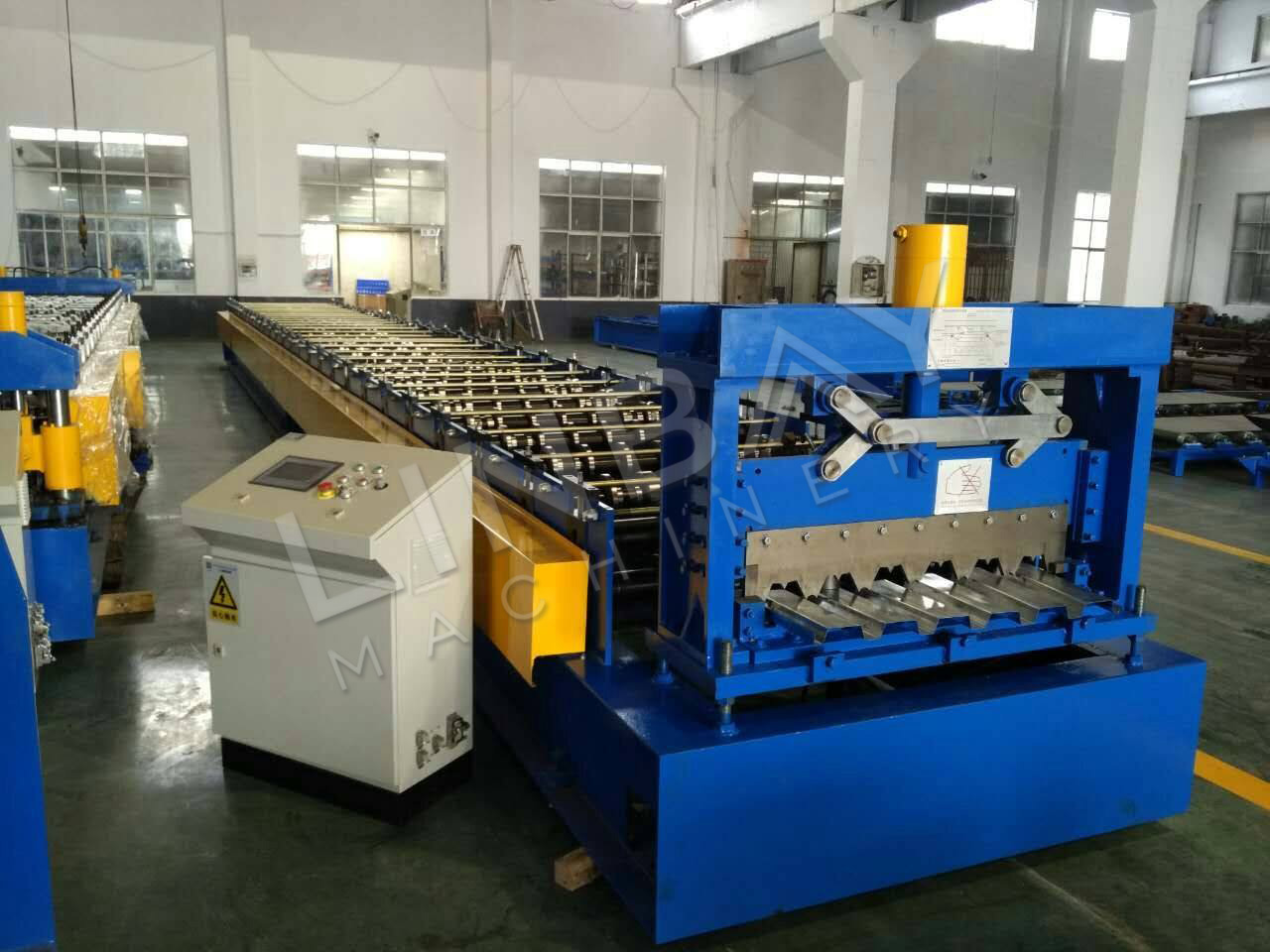

TRD91.5 Metal Deck Roll Forming Machine

1mm Metal Deck Roll Forming Machine

0.8mm steel roll forming machine

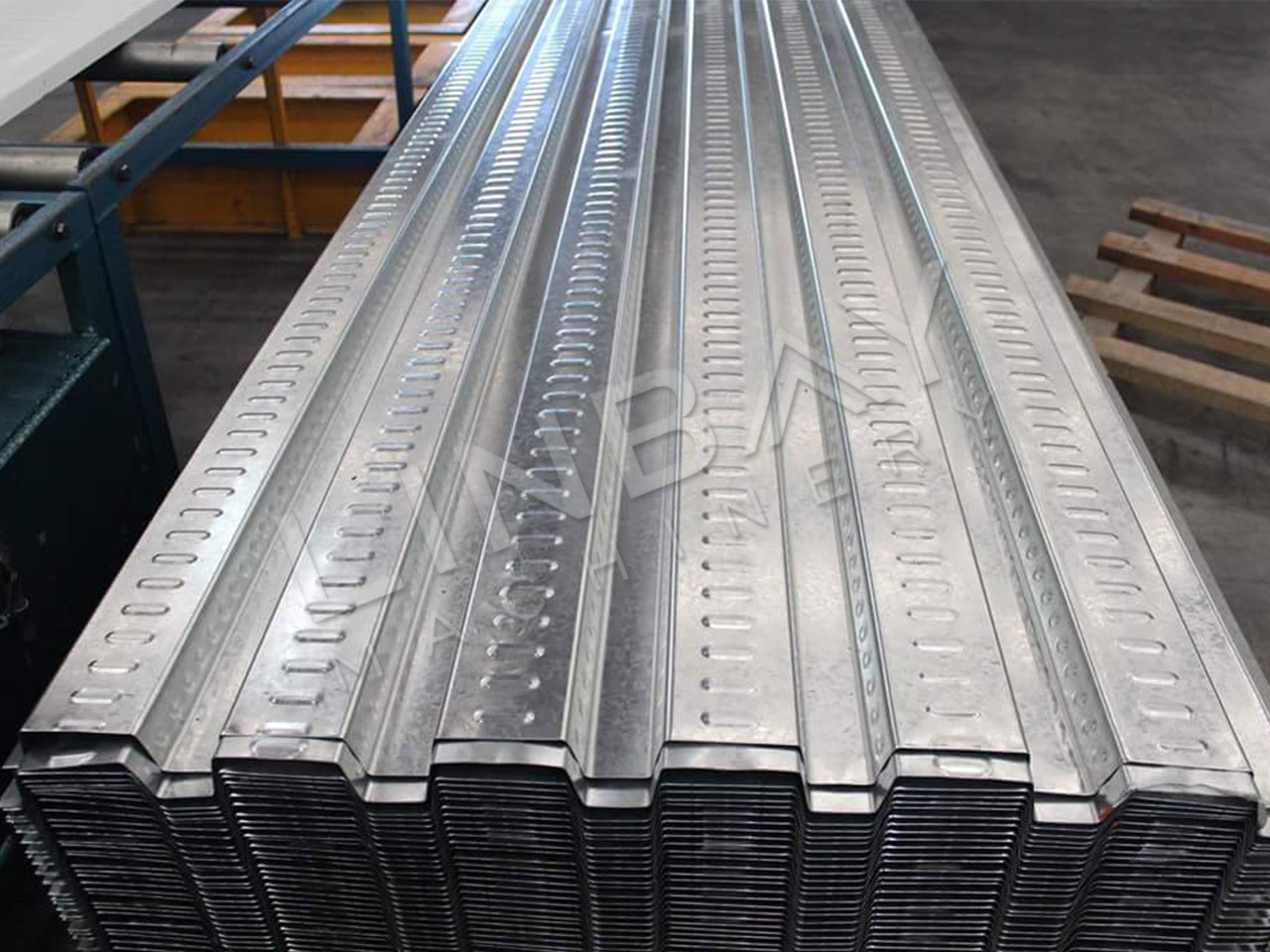

TRD91.5 Metal Deck Roll Forming Machine 0.8-1mm Mexican Losacero 15 Images
