UK TR80+ Floor-Bearing Plate Forming Machine Thickness 1mm S350 Galvanized Steel
The main features of the floor bearing plate equipment (metal deck roll forming machine/metal deck bending machine)
1,Adapt to the main steel structure fast construction requirements, can provide a firm working platform in a short period of time, and can be used for multiple floors laying pressure plate, layered pouring concrete slab flowing construction. (floor decking roll forming machine/ floor decking bending machine)
2, in the use of the stage floor bearing plate as a concrete floor slab of the tensile steel, but also to improve the stiffness of the floor slab, saving the amount of steel and concrete.
3,The surface embossing of the pressure plate makes the combination between the floor bearing plate and concrete, so that the two form a whole, with stiffening ribs, so that the floor bearing plate system has a high bearing capacity. (Steel deck roll forming machine/Steel deck bending machine)
4,Under cantilevered conditions, the floor bearing plate is only used as a formwork. The length of the overhang can be determined according to the cross-sectional characteristics of the floor joists. To prevent the cantilevered slab from cracking, negative reinforcement is required at the support according to the structural engineer's design. (roof deck roll forming machine/ roof deck bending machine)
Flow chart of UK TR80+ Floor-Bearing Plate Forming Machine Thickness 1mm S350 Galvanized Steel:
Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table
The version produced by this machine is known as TR80+ in the UK and is a heavy duty capacity floor bearing plate. This type of shape is very difficult to make, but LINBAY MACHINERY has made the machine very well and the customer is very happy. The version is very flat and not distorted.
| UK TR80+ Floor-Bearing Plate Forming Machine Thickness 1mm S350 Galvanized Steel |
| Component 1: | Hydraulic decoiler | 5-7.5Tons |
| Component 2: | Roll forming machine | 3*15kw forming motor 34 forming stands Shafts φ90mm Embossing rollers 1 stands |
| Component 3: | Hydraulic station | 7.5kw motor |
| Component 4: | Control panel | Siemens PLC |
| Component 5: | Hydraulic station | 7.5kw |
| Component 6: | Out table | Manual type 2*2m |
| Voltage: | 380V 50Hz 3Ph |

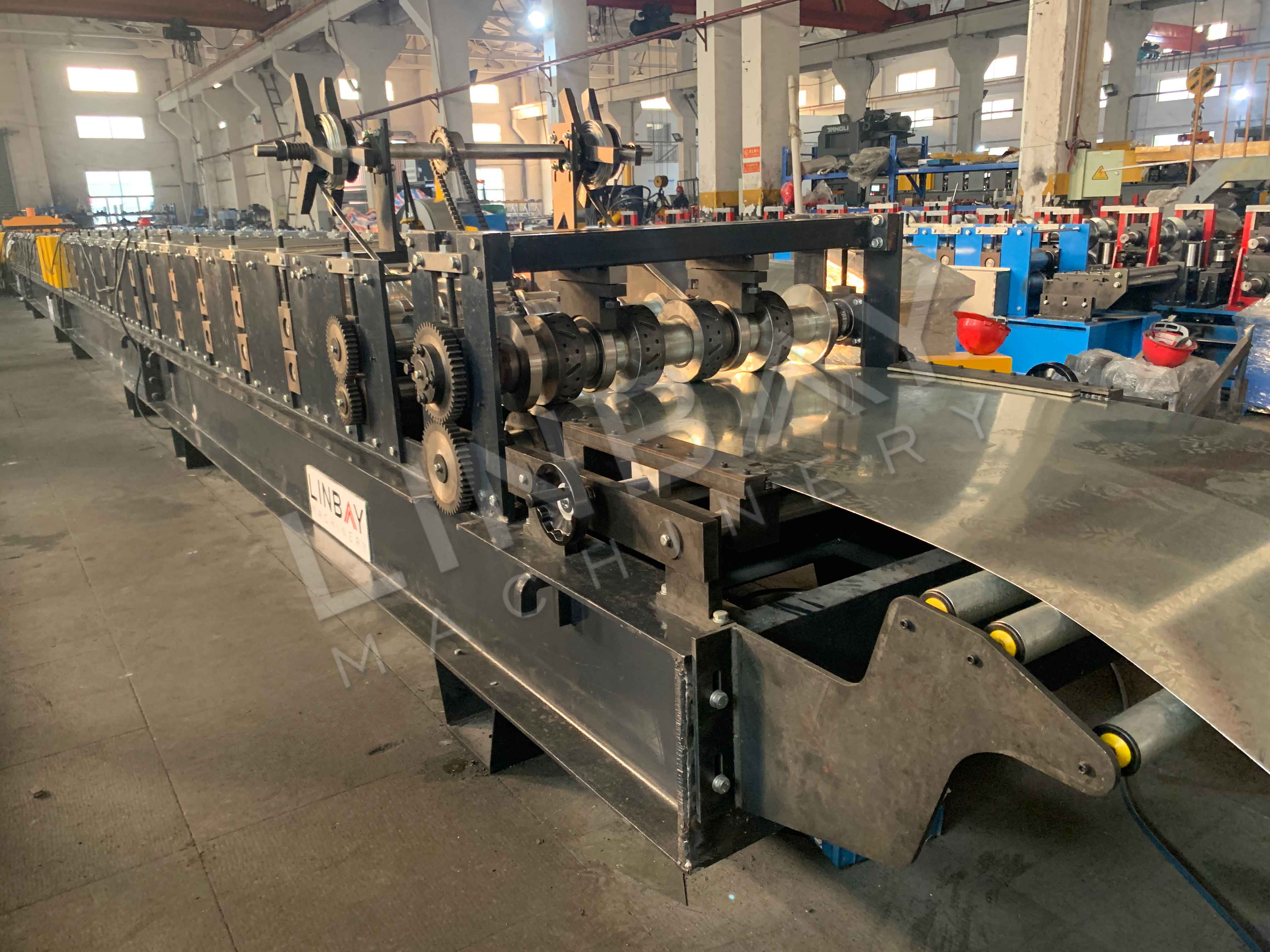

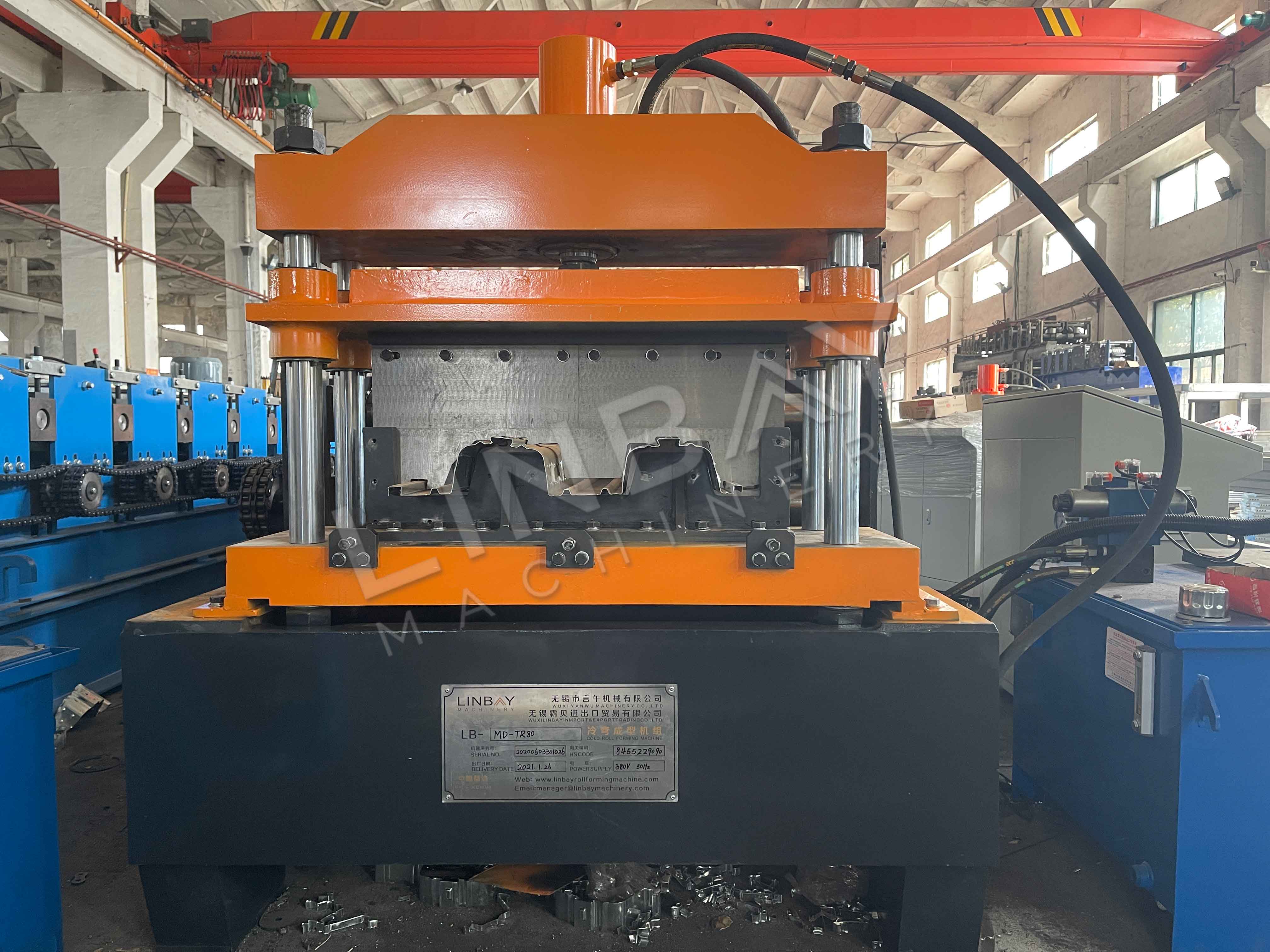

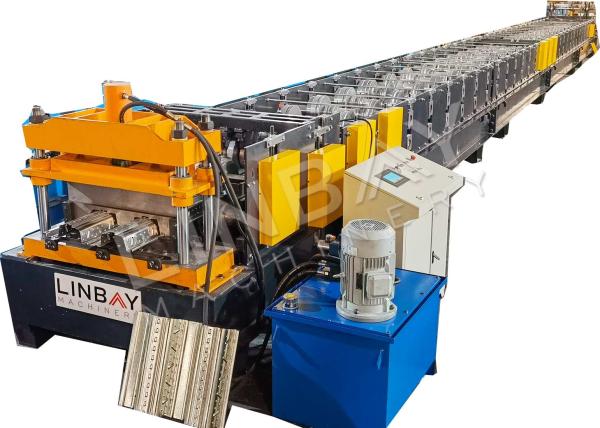

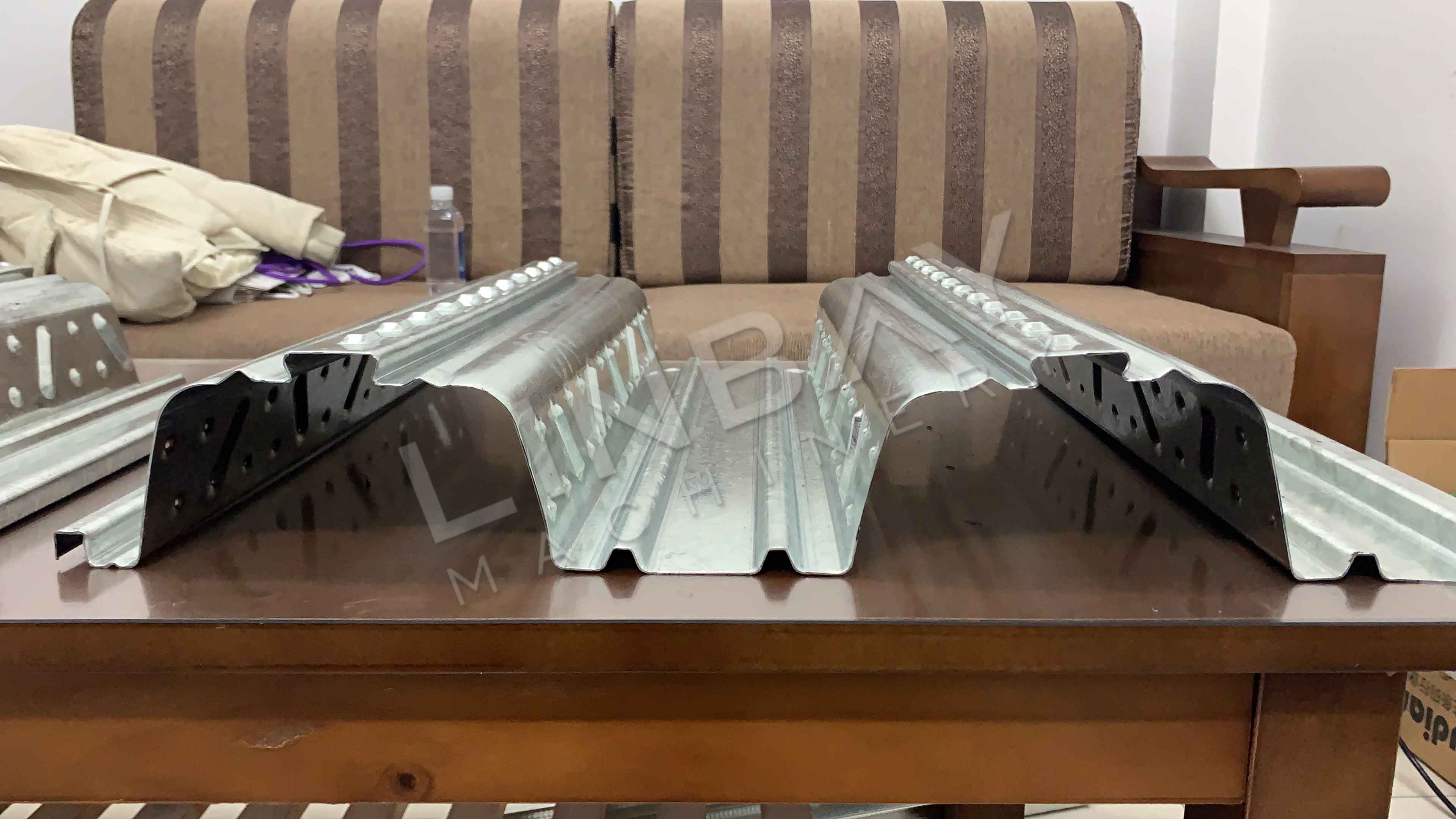

Pictures of UK TR80+ Floor-Bearing Plate Forming Machine Thickness 1mm S350 Galvanized Steel:
